TraceClient 2

TraceClient 2 is a software platform developed by ZD for automotive bus data acquisition. It incorporates features such as data download, data conversion, and port configuration, and is compatible with the ZD Datalogger 2. The software meets the requirements of OEMs, R&D engineers, and test engineers throughout the entire R&D process, supporting functions such as bus data acquisition, ECU development, functional testing, and vehicle testing.
Technical Document Get In Touch With Us

Features

Simple and comfortable operation
User-friendly interface: offers a straightforward and efficient interaction experience with high flexibility

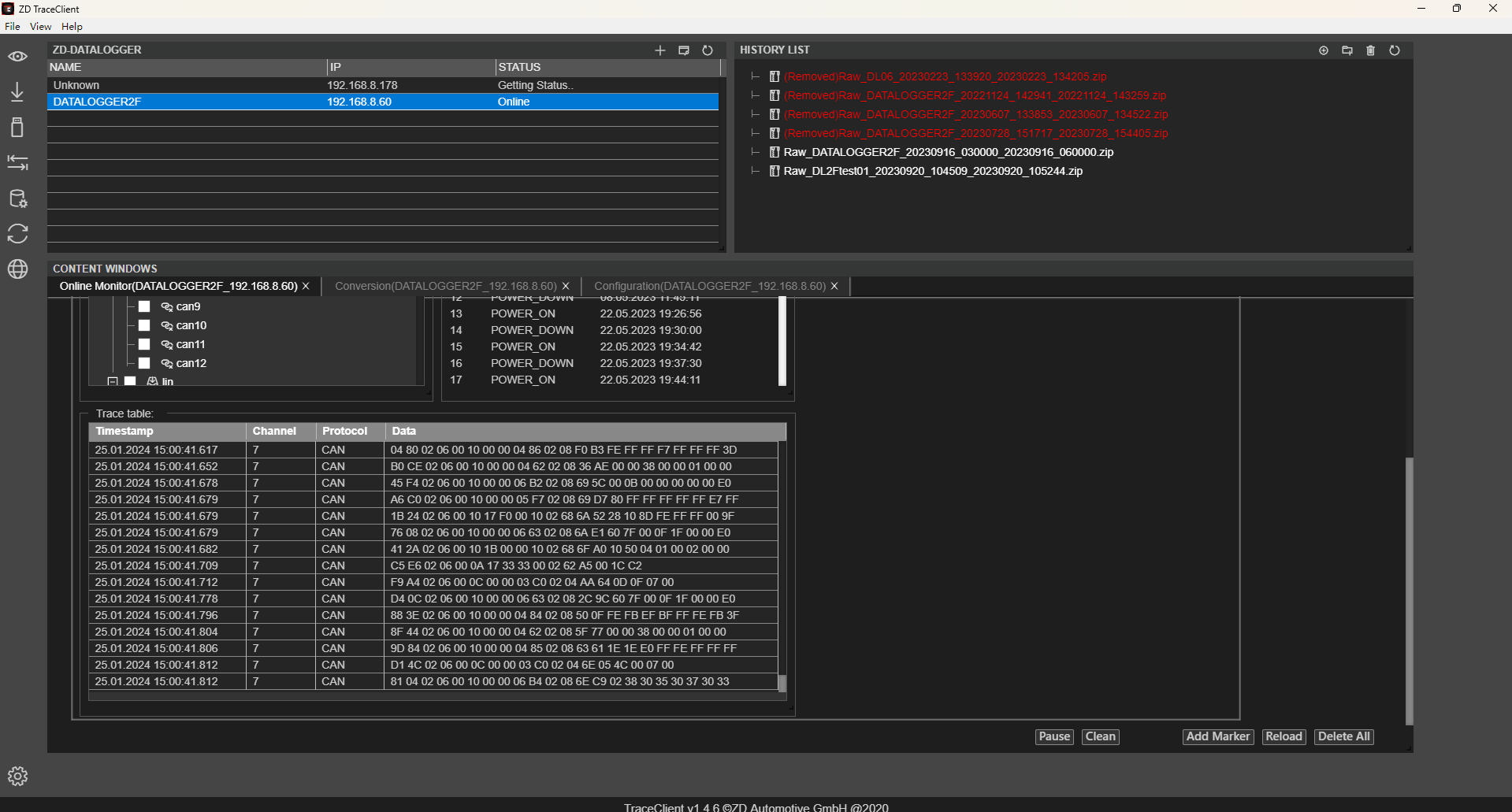

Real-time data display
Real-time monitoring of data recording status and interface data
Data Management and Download

－ Data collected by the ZD Datalogger2 can be downloaded to alocal computer in the form of ZIP packages or folders

－ Supports downloading data by marking specific time slices to easily identify the key frames

－ Facilitates the download of comprehensive data sets over extended periods for robust data backup

－ Achieves maximum download rates up to 25MB/s via the management network connection and up to 250MB/s via direct hard disk access

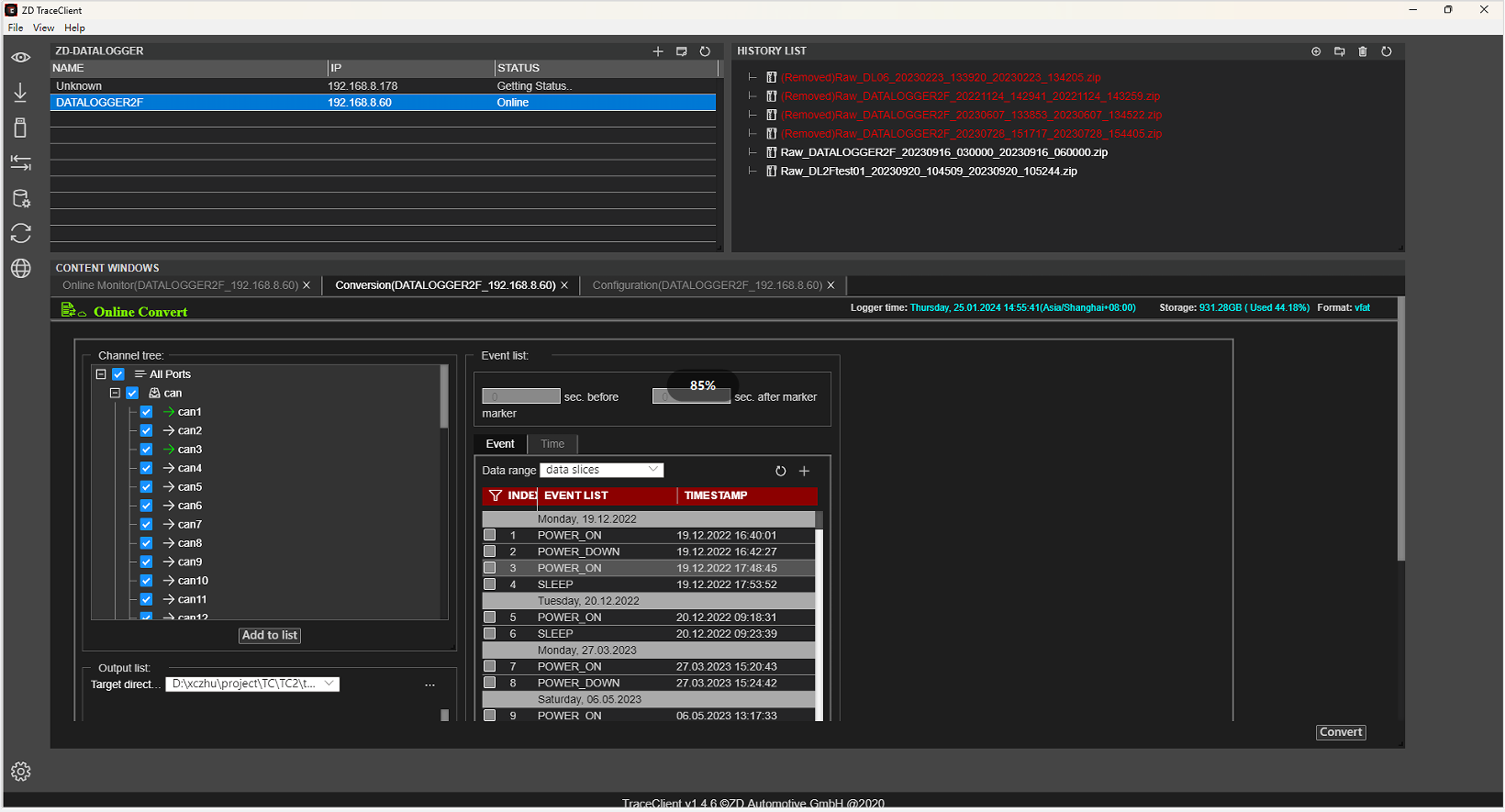

Various data format conversions

－ CAN/CANFD/LIN: asc, blf

－ FlexRay: blf

－ UART/ADB: txt

－ Ethernet: pcap

－ Automotive Ethernet: dlt, bin, esotrace

Data visualization
Supports importing downloaded data from ZIP packages or folders for secondary conversion

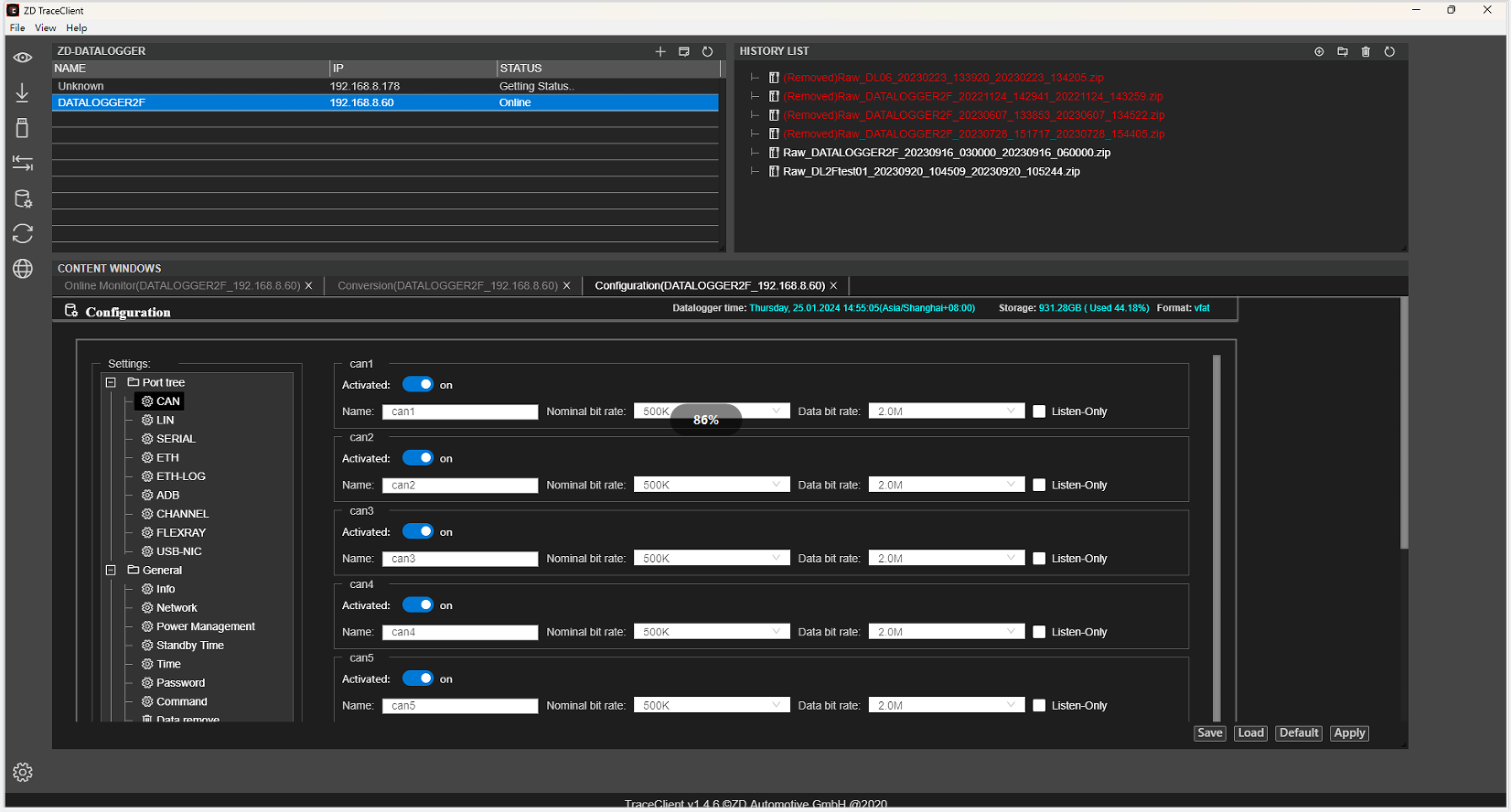

ZD Datalogger 2 management features

－ Set baud rates for bus interfaces and bandwidth for network interfaces

－ Configure device name, password, and time zone

－ Configuration of the interface activation and deactivation and standby time

－ Deletion of logger data

Application Range

The TraceClient 2 was developed to operate in conjunction with the ZD Datalogger 2. Its primary goal is to provide users with a simple and user-friendly configuration of the ZD Datalogger2. Additionally, it facilitates efficient data processing, including downloading, converting, and deleting.

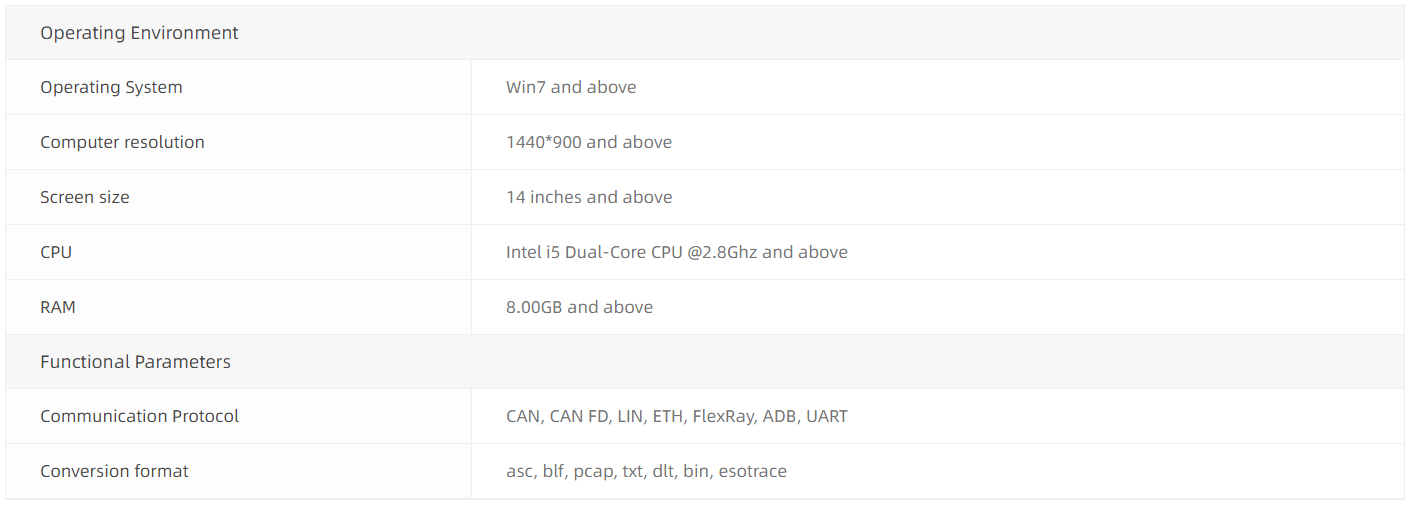

Specifications
