－ The software is tailored to the user's habits, offering easy and efficient interaction with high flexibility

－ Supports the activation of various bus port types, as well as sleep and wake-up functions, and also allows for the configuration of data recording segment sizes

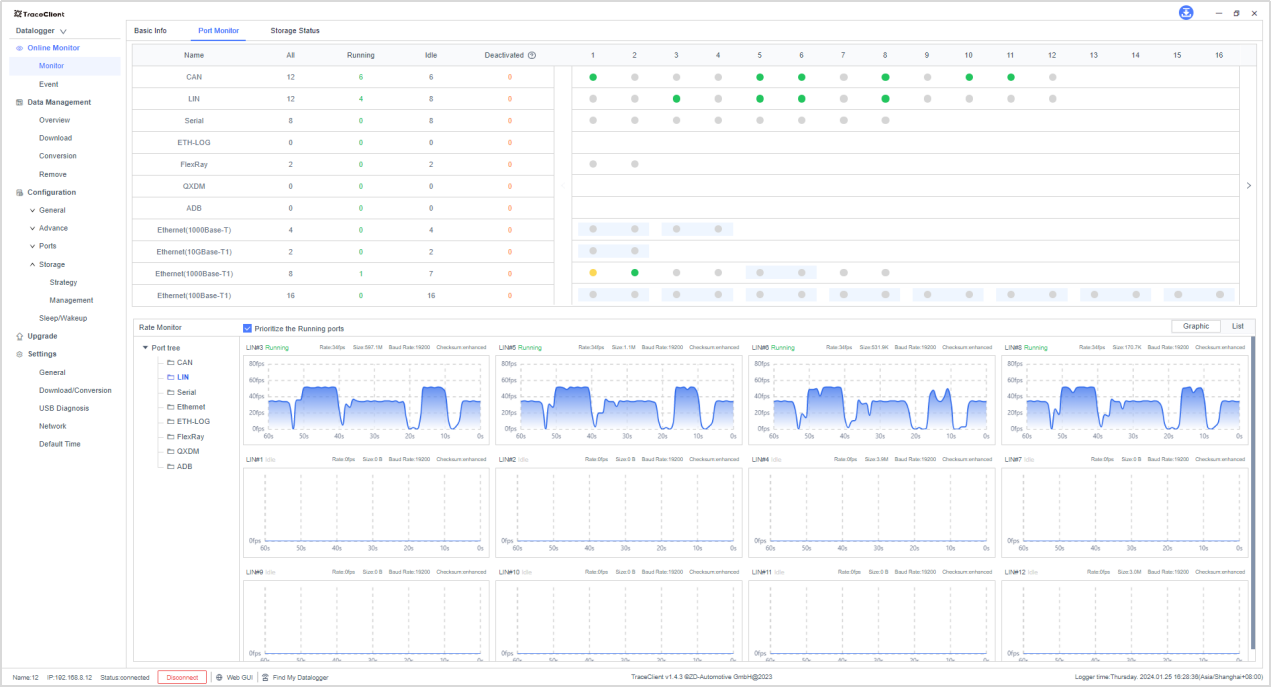

－ Real-time status monitoring of all ports

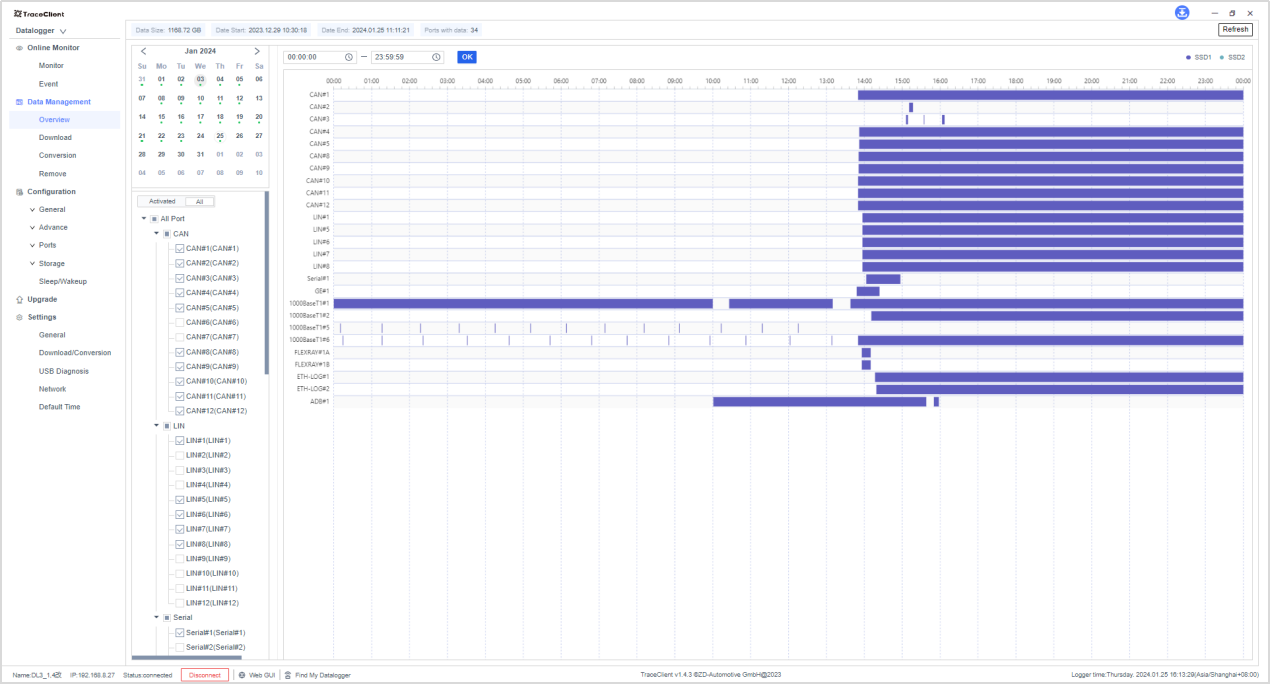

－ Visual data preview by date and port

－ Data collected in the recorder can be downloaded to the local computer in form of a ZIP packages or a folder

－ Enables downloading of data from marked, adjacent time ranges to more easily identify key frames

－ Offers the capability to download large data collections over extended periods of time as a whole

－ Data can be transferred via the recorder’s 2.5G management port at a rate of up to 200MB/s or via a direct hard disk connection at a rate of up to 400MB/s

－

－ CAN/CANFD/LIN: asc, blf, mf4

－ FlexRay: blf, mf4

－ UART/ADB/Autotalks: txt

－ QXDM: qmdl

－ Ethernet: pcap, blf, mf4

－ Automotive Ethernet: dlt, bin, esotrace

－ Video streams: mp4

Multiple tasks such as downloading and converting data can be performed simultaneously

－ Facilitates the importing and processing of data from ZIP packages or folder, including functions such as downloading, converting, and deleting

－ Supports the import of data from directly connected external storage devices, allowing for efficient handling through downloading, converting, and deleting

Access to ZD Cloud: Enables connection via wired or wireless internet devices, facilitating remote access for customers and data access from off-site locations

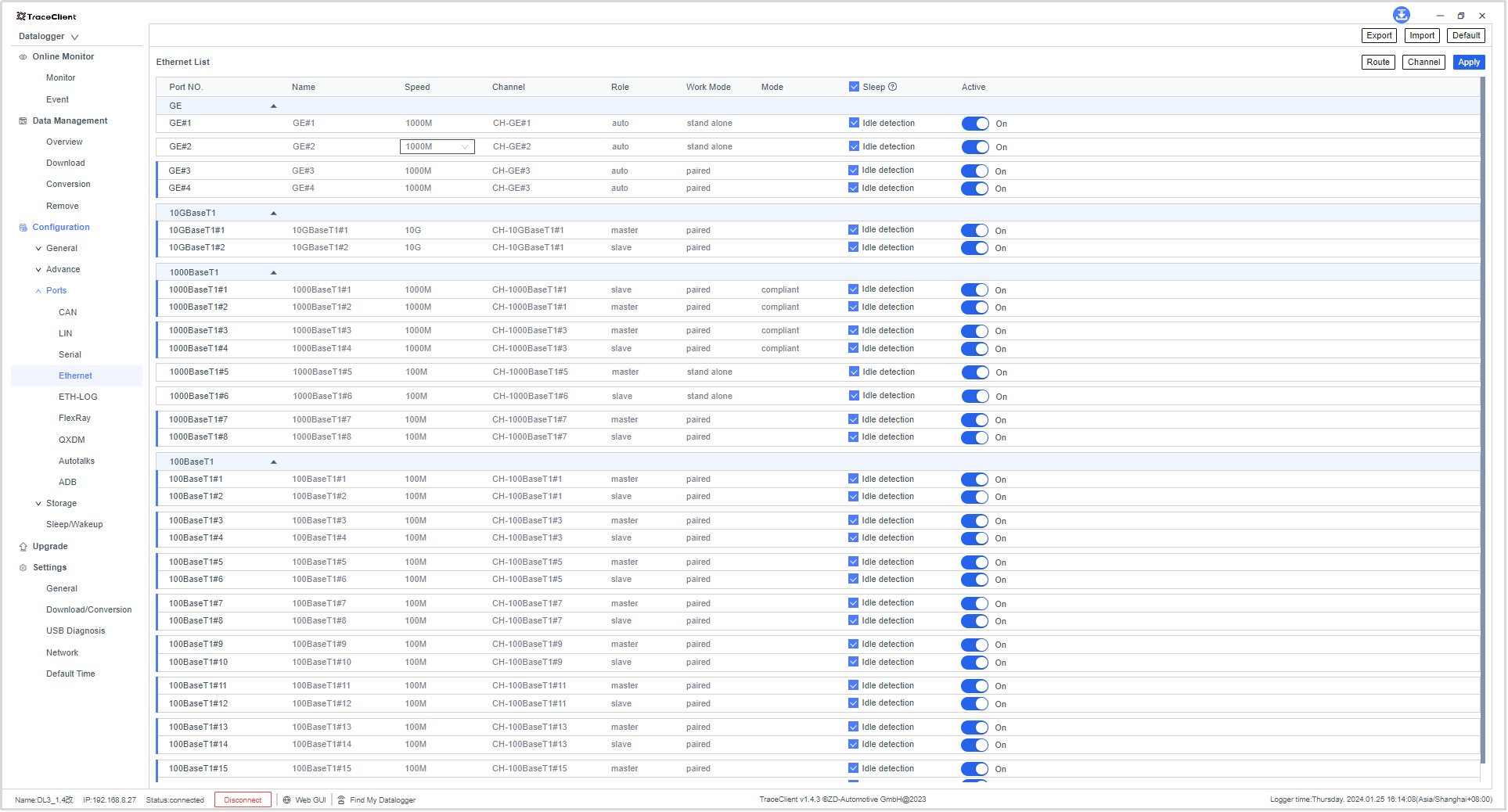

－ Set baud rates for bus interfaces and bandwidth for Ethernet ports

－ Configure device name, password, time zone, and time synchronization

－ Configuration of interface activation and deactivation, and standby time

－ Configure real-time dynamic forwarding for controllers and Ethernet ports

－ Implementation of various filter rules to manage data flow and security

－ Configuration of rules for starting and stopping recordings, including manual and automatic triggering based on signal thresholds

－ Deletion of logger data

－ Hard Disk management: Configure hard drive settings including ring buffer writing rules, partitioning, formatting, mounting, and unmounting

－

－ Offers methods for querying and setting configurations of bus interfaces, such as baud rate and Ethernet port bandwidth

－ Provides capabilities to download, convert, and delete data

－ Includes methods for setting and retrieving data tags

－ Features support for NTP time synchronization to ensure accurate time alignment across systems
